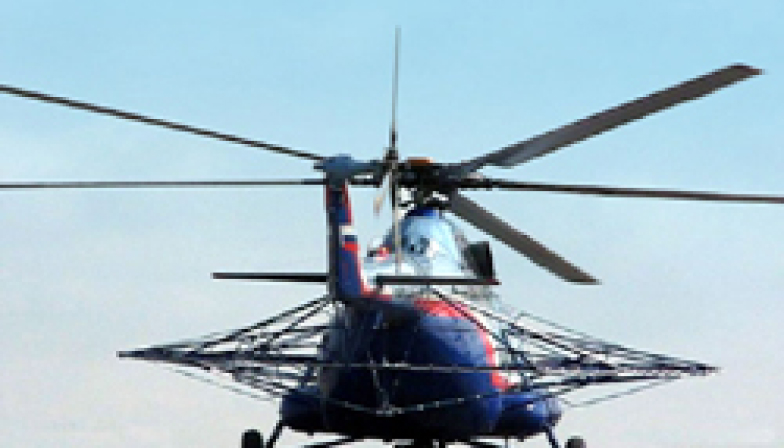

EM-4H transmitter and compensator loops

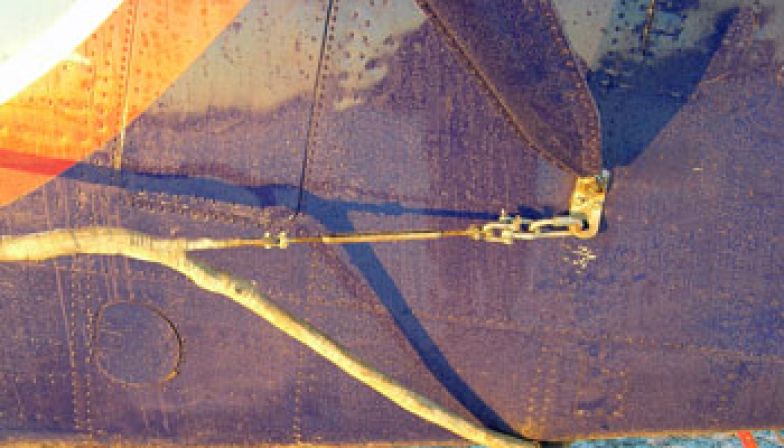

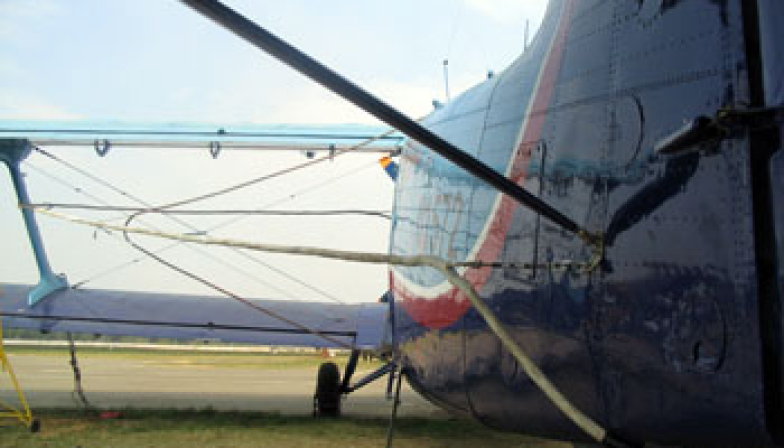

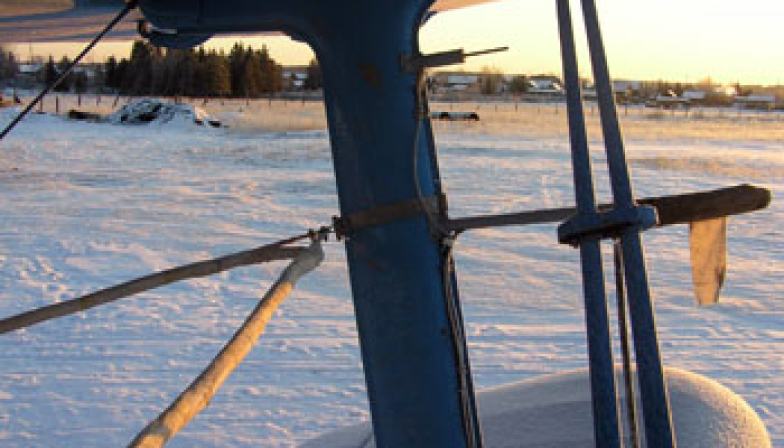

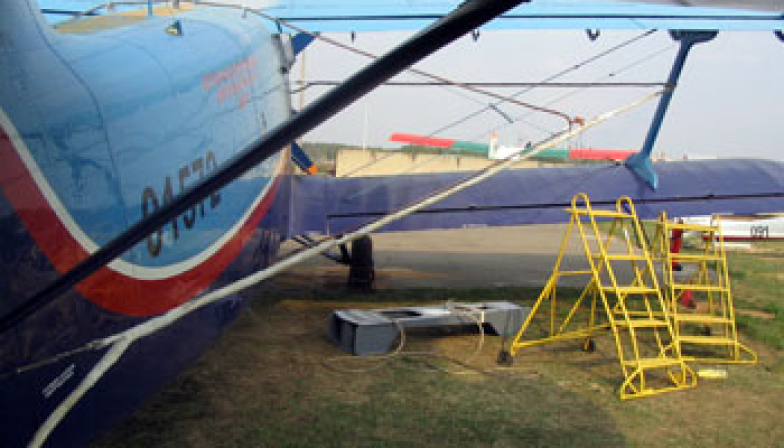

Loops are mounted outside fuselage
Main (vertical) dipole:
number of turns — 27
cord section — 4 mm2
length — 29 m
weight — 30 kg
Compensation (horizontal) dipole:
number of turns — 12
cord section — 1 mm2
length — 15m
weight — 8 kg
