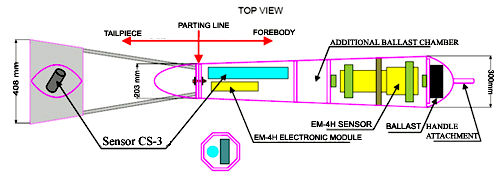

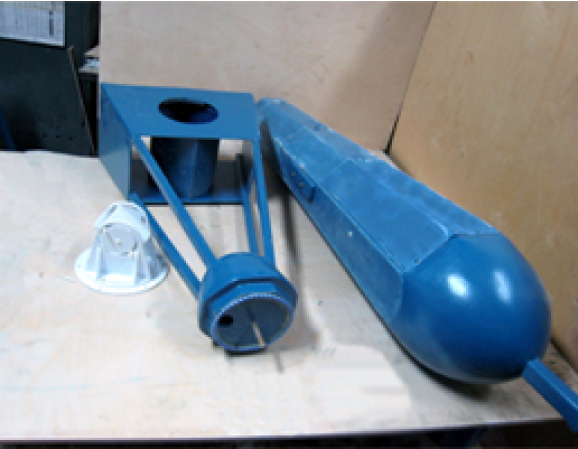

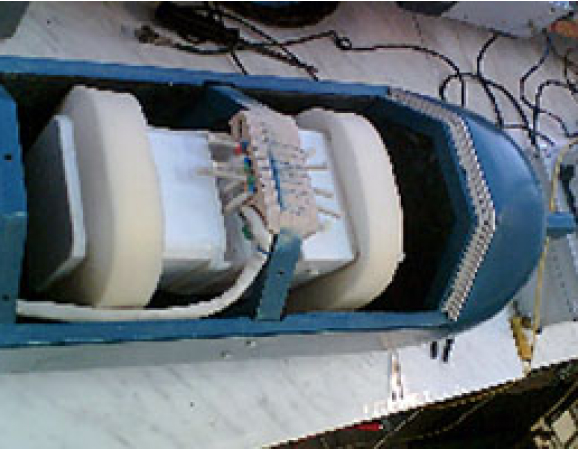

EM-4H towed bird with the tri-axial inductive sensor and electronic block installed inside

The bird is towed by 70 meter long towing cable behind the aircraft.

It has special places for quantum magnetometer installation (Scintrex CS-3 or Geometrics G-822A).

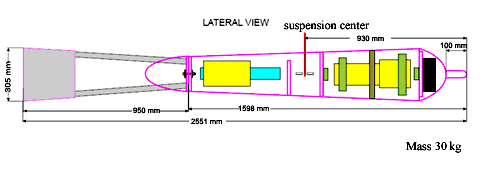

Tale dimensions are 950x408x305 mm (length width height)
Head dimensions are 1598x300x300 mm (length width height)
Total dimensions are 2551x408x305 mm (length width height)
Weight — 30 kg
